When it comes to maintaining the efficiency of compressed air systems, a regenerative desiccant air dryer is an essential component. Whether you’re operating a manufacturing plant or managing a workshop, understanding how these dryers work and their benefits can significantly impact your operations.

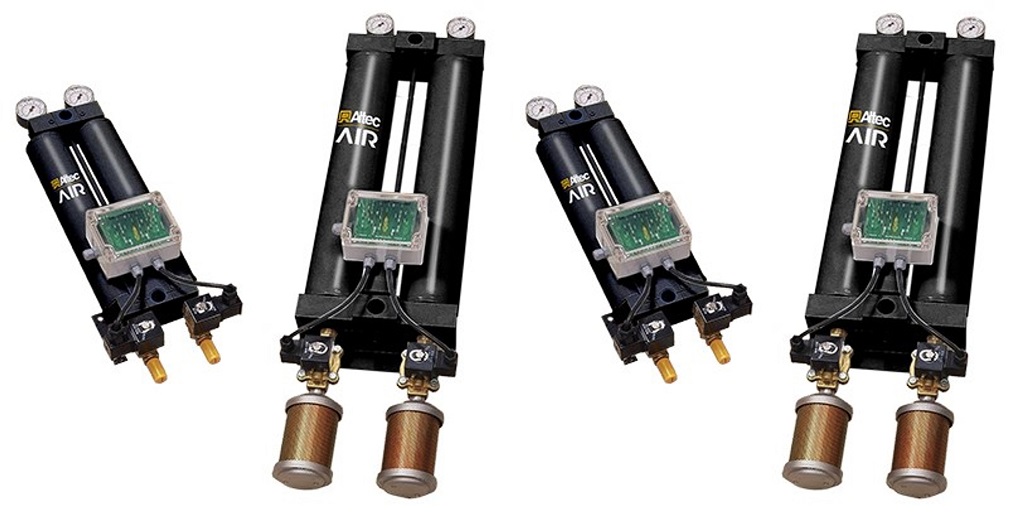

An Overview of Regenerative Desiccant Air Dryers
Regenerative desiccant air dryers clear the air, literally, by sweeping away moisture that could clog up your systems and bring them to a standstill. These dryers use a desiccant material, typically silica gel or activated alumina, to adsorb moisture from the air. The term “regenerative” refers to the dryer’s ability to renew the desiccant material, allowing for continuous operation.
The Science Behind Regenerative Desiccant Air Dryers
The process begins with moist compressed air entering the dryer. The air passes through a bed of desiccant material, which adsorbs the water vapor. As the desiccant becomes saturated, the dryer switches to a second desiccant bed while the first one regenerates.
This regeneration can occur through heat (heated regeneration) or without heat (heatless regeneration), depending on the system design. This cycle ensures a constant supply of dry air.
Benefits of Regenerative Desiccant Air Dryers
Consistent Performance: Corrosion and damage can be costly and devastating for pneumatic systems and equipment, which is why these dryers are so crucial – they furnish a reliable source of dry air to keep these threats at bay.
1. Energy Efficiency: Compared to other types of dryers, regenerative desiccant air dryers can be more energy-efficient, particularly when equipped with energy-saving features like purge control.
2. Versatility: Across different sectors, their adaptability shines – from the controlled environments of pharmaceutical labs to the bustling floors of food processing plants.
3. Durability: Built to last, these dryers are a long-term investment for any operation relying on compressed air systems.
Types of Regenerative Desiccant Air Dryers
There are several types of regenerative desiccant air dryers, each with its specific applications and benefits:
1. Heatless Desiccant Dryers: These dryers use a portion of the dried air to regenerate the desiccant material. They are simpler and have lower initial costs but may consume more air.
2. Heated Desiccant Dryers: These utilize external heaters to regenerate the desiccant. They are more energy-efficient and can handle larger volumes of air but are more complex and expensive.
3. Blower Purge Desiccant Dryers: These dryers use an external blower and heaters for regeneration, minimizing the use of dried air. They offer high efficiency and lower operational costs.
Regenerative vs. Refrigerated Air Dryers
When comparing regenerative desiccant air dryers to refrigerated air dryers, the key differences lie in their drying methods and suitability for various applications. Refrigerated dryers cool the air to condense moisture, making them suitable for applications where moderate dew points are acceptable. However, regenerative desiccant air dryers can achieve much lower dew points, making them ideal for critical applications where extremely dry air is necessary.
Buy Regenerative Compressed Air Dryer
Making the right air dryer choice can mean the difference between a system that hums along efficiently and one that burns out way too soon. Regenerative desiccant air dryers deliver rock-solid performance across a wide range of industrial settings, yielding consistently high-quality dry air that never falters.
For those in need of a dependable compressed air drying solution, consider exploring the regenerative desiccant air dryer options available at Air & Vacuum Process. Whether you’re faced with standard or specialized needs, their extensive dryer portfolio shines with solutions crafted to produce peak system results, every time.
